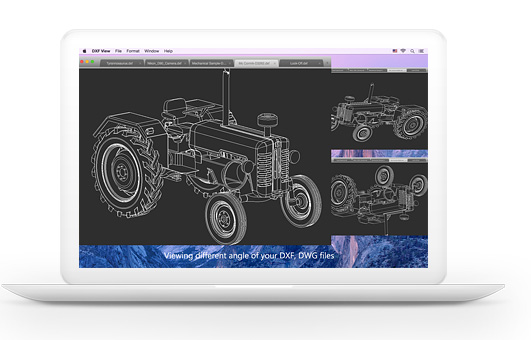

Open and View DXF & DWG Files

Easily drag and drop to open Autodesk DXF/DWG files.
View multiple DXF/DWG files seamlessly and quickly from different tabs.
Render complex or large DXF/DWG files without readability issues.
Support visualization of 3D Wireframe and Shade.
Display all the layers and elements without errors, exactly the same as it was created.
Read the files in full screen mode.
Tile the window to the left or right of your screen for comfortable reading.

Zoom, Move DXF, DWG Files and Display the Layers

Zoom in or out to check the details or overview as you like.
Move the drawings, lines, polylines, texts, and so on in the file to any position, so you can adjust the view or compare the files as needed.
Reset view if you want to undo Zoom in/out, or Move the files.
Hide or unhide the layers in DXF/DWG file to customize workflow.

Measure DXF/DWG Files

Measure angle between 2 lines, edges, geometirc elements and so on, with high accuracy.
Measure area of closed shapes within the drawings.
Measure the distance between 2 points, edges and so on.
Clear all measurement with one click if you want to undo.

Markup DXF/DWG Files

Annotate with guideline or cloud rectangle for design reviews and collaboration.
Add rectangle, circle, ellipse and polyline to markup the drawings.
Add text comments or annotations to the design.
Change brush color with ease.
Save or clear all annotations with one click.

Export DXF, DWG to PDF and Print

Save DXF, DWG files as PDF format without losing quality, so you can easily share, upload or distribute easily.
Print out the AutoCAD DXF, DWG files directly, you can select copies, page range, paper size, orientation, scale and other details to print.

Testimonial


Christina: America

As a designer, I have to show my design to a lot of clients, and explain it. I hate to open software to read. DXF viewer really helps, and it is very fast to open the draft. I can display my drawing from different angle.


King: U.K

It is great, and I can use it to check my designer’s work, I don’t need to download and buy 3D software.


David: Canada

As an interior design, I really need a software like DXF Viewer. With this tool, I can open my work everywhere without launching CorelCAD or Autodesk.
